Heavy Wall Alloy Steel API Perforated Tubing Pup Joint

Name: Heavy Wall Alloy Steel API Perforated Tubing Pup Joint
Brand: zhongshi
Price: 1 USD

Brand Name : zhongshi

Model Number : pup joint

Certification : API 5CT ,ISO ,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Delivery Time : 2 weeks

Packaging Details : exported packing

Material : alloy steel,J55 K55 N80 L80 P110

Product name : API 5ct casing and tubing pup joint

Standard : API, ISO,QHSE

Thread : EUE , NUE

Thickness : 2.87-30mm,4.24--20.62mm

Size : 2-3/8-----3-1/2

Contact Now

API High Quality And Low Price Perforated Tubing Pup Joint

Product Description:

Pup Joints are used to adjust the height of full length tubing or casing strings. They are also used to adjust the depth of downhole tools. Pup Joint sets are available in: Integral Premium Thread Box-by-Pin Pin-by-Pin with couplings boxed separately Pin-by-Pin with couplings hand tight Pin-by-Coupling Box Flush joint connections

Features:

1. Grade:J55, K55, N80-1, N80-Q, L80, C90, P110
2. We also supply permium thread products by customer's request
3. Size: tubing coupling from 1.9" to 4-1/2",Casing coupling fro4-1/2"to 13-3/8"
4. Type: NU, EU(tubing coupling), STC,LC,BTC(casing coupling).
5. Surface treatment: Whole phosphating, or inside phosphating and outside coating
6. Packing: By carton, wooden case, wooden pallet, or by requirements of customers

Technical Parameter:

Diameters:	1.9" through 4.5" nominal O.D.
Weights:	Standard or Heavy Wall
Lengths:	2, 3, 4, 6, 8, 10, 12 ft. Standard (Other lengths available upon request)
Grades:	J-55, N-80, N-80 Q & T, L-80, P-110
Connections:	EUE, NUE, Buttress

Size	Type of Thread	O.D*L (mm)	Weight(kg)
2-3/8"	NUE	73.02*107.95	1.28
2-3/8"	EUE	77.80*132.82	1.55
2-7/8"	NUE	88.90*130.18	2.34
2-7/8"	EUE	93.17*133.35	2.40
3-1/2"	NUE	107.95*142.88	3.71
3-1/2"	EUE	114.30*146.05	4.10
4"	NUE	120.65*146.05	4.35
4"	EUE	127.00*152.40	4.82
4-1/2"	NUE	132.08*155.58	4.89
4-1/2"	EUE	141.30*158.75	6.05

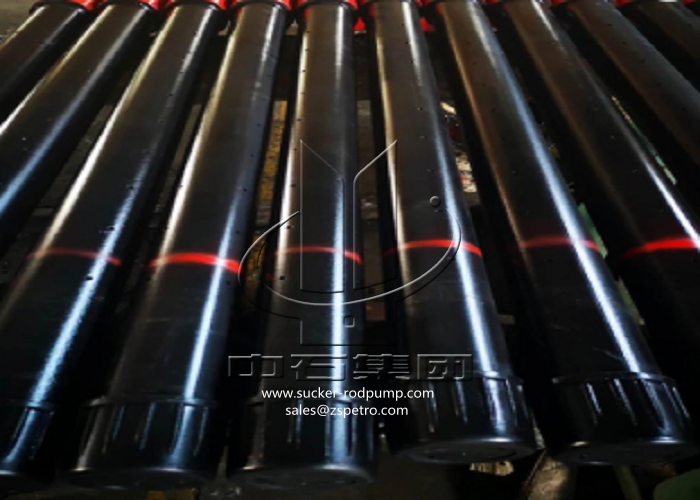

Heavy Wall Alloy Steel API Perforated Tubing Pup Joint
