API Oilfield Hinged Spiral Nail Stop Collar Carbon Steel

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~20"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Product : API Oilfield Hinged Spiral Nail Stop Collar

Installation : Hinged Type

Nail : Spiral

Processing Type : Casting

Material : Carbon steel

Application : Oilfield Cementing Equipment

Contact Now

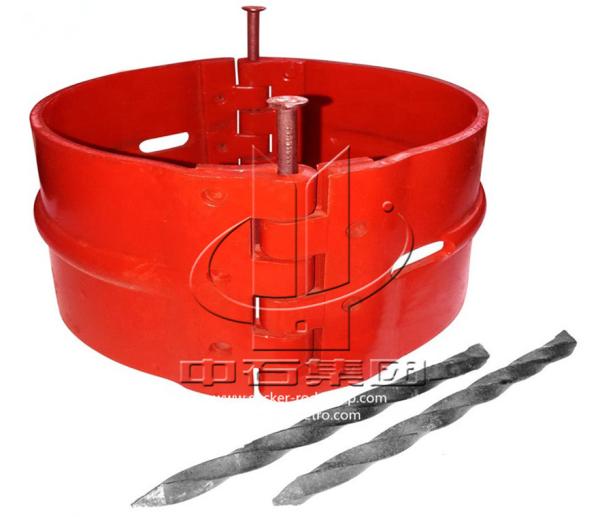

API Oilfield Hinged Spiral Nail Stop Collar

Hinged Spiral Nail Stop Collar is combine in two pieces and hinged at two-end 180 degree apart. This hinged Stop Collar has an internal groove into which a spiral-locking pin is driven.

API Oilfield Hinged Spiral Nail Stop Collar Features

  • Hinged at two parts
  • Connected by Bolt or Spiral Nail
  • It tightens the collar to the casing firmly.
  • They can be latched on the casing pipe without having to be slipped on

API Oilfield Hinged Spiral Nail Stop Collar Specification

Specification

(Inch)

ID
(mm)
OD
(mm)

Holding Force

(KN)

5 1/ 2” 139 151 30
5” 126 138 24
4 1/ 2” 114 126 24
13 3/ 8” 338 350 40
10 3/ 4” 272 284 40
9 5/ 8” 245 257 40
8 1/ 8” 206 218 40
7 5/ 8” 193 285 30
7” 177 189 30
