Oilfield Cement Float Equipment Steel Casing Float Shoe Single Valve

Name: Oilfield Cement Float Equipment Steel Casing Float Shoe Single Valve
Brand: Puyang Zhongshi Group
Price: 1 USD

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~36"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Product : Oilfield Single Valve Cementing Float Shoe

Steel Grade : P-110, K55, J55, N80,L80

Valve : Single

Material : Steel

Thread : API thread or as required

Size : 4 1/2"-20"

Contact Now

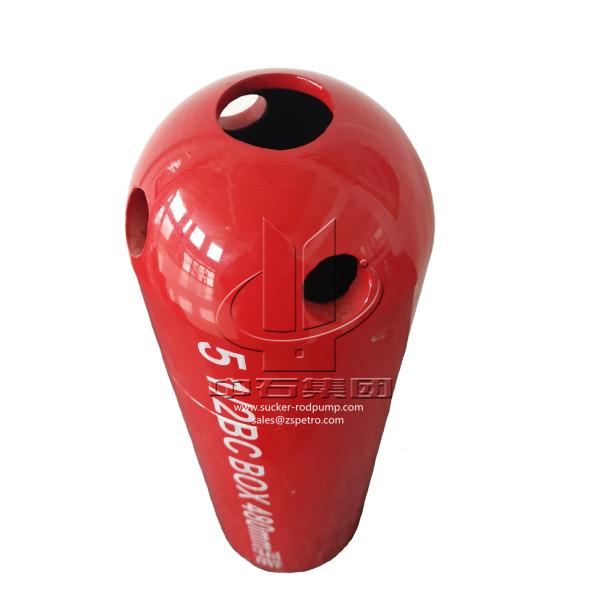

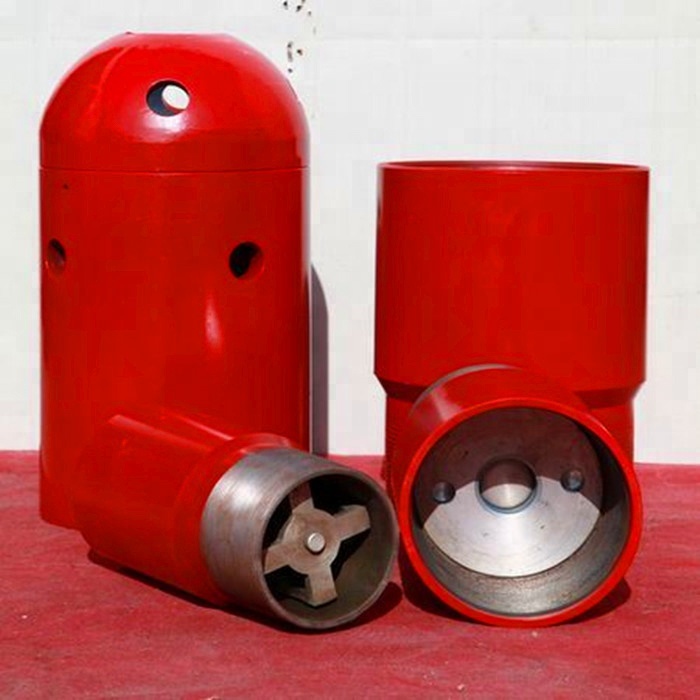

Oilfield Single Valve Cementing Float Shoe

It guides the casing to total depth and prevents contaminated mud from entering the casing. Also it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures greater accuracy of cement slurry displacement.

Oilfield Single Valve Cementing Float Shoe Features

Inverted Poppet valve has greater strength.
Non-Metallic parts prevent damage to PDC Drill Bit.
Controlled buoyancy-regulated by filling casing cum surface.
It provides a landing point for casing wiper plugs,
Reinforces the lower end of the casing string

Oilfield Single Valve Cementing Float Shoe Specification

Size (in)	Bore O.D (in)	Bore I.D (in)	Min.Bore Parameter (in)	Thread Type	Ib (in 2)
5 1/ 2”	6”	4 3/ 4”	2”	5 1/ 2” LCSG	4351
7”	7 5/ 8”	6 1/ 4”	2 3/ 8”	7” LCSG	3626
9 5/ 8”	10 5/ 8”	8 5/ 8”	2 3/ 8”	9 5/ 8” LCSG	3626
13 3/ 8”	14 3/ 8”	12 3/ 8”	2 3/ 8”	13 3/ 8” LCSG	3626

Oilfield Cement Float Equipment Steel Casing Float Shoe Single Valve
