Name: 1045 Steel Tungsten Carbide Downhole Pumps Ball Valve Seat
Brand: Puyang Zhongshi Group
Price: 1 USD

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~36"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 5

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Product : 1045 Steel Tungsten Carbide Valve Ball And Seat For Sucker Rod Pumps

Material : Stainless Steel

Application : sparepart of sucker rod pump

Processing Type : Casting

Warranty of core components : 1 year

Contact Now

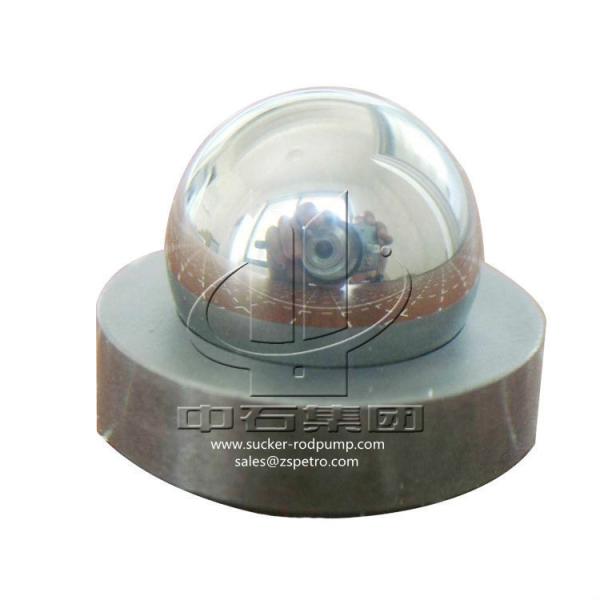

1045 Steel Tungsten Carbide Valve Ball And Seat For Sucker Rod Pumps

valve and seat is one of the main part of the API sucker rod pump .
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).

1045 Steel Tungsten Carbide Valve Ball And Seat For Sucker Rod Pumps Features

1045 Steel Tungsten Carbide Valve Ball And Seat For Sucker Rod Pumps Specification

Size of ball(mm)	Size of ball(mm)	Size of ball seat(mm)	Size of ball seat(mm)
Ø19.05	Ø19.05	Ø13* Ø15*12	Ø23.32* Ø15*12.7
Ø22.2	Ø23.83	Ø28* Ø18*12	Ø29.67* Ø18.2*12.7
Ø25	Ø28.58	Ø28* Ø19*12	Ø35.26* Ø22.2*12.7
Ø25.4	Ø34.93	Ø30* Ø18*12	Ø43.69* Ø27.4*12.7
Ø29	Ø42.88	Ø34* Ø23*12	Ø51.05* Ø33.6*12.7
Ø32	Ø50.8	Ø47* Ø27*12.7	Ø67* Ø39.9*19.1
Ø35	Ø57.15	Ø44* Ø27*15	Ø67* Ø44.8*19.1
Ø38	Ø63.5	Ø55* Ø30*20	Ø78.4* Ø49.8*19.1
Ø45	Ø69.85	Ø55* Ø36*15	Ø91.1* Ø54.8*19.1
Ø50	Ø74.61	Ø65* Ø40*20	Ø88* Ø63.5*20
Ø50.8		Ø67* Ø41*15
Ø55		Ø67* Ø45*20
Ø60.325		Ø77* Ø50.5*20
Other size as client’s request
