35 Mpa Casing Cement Float Equipment Single Valve Float Collar Shoe

Name: 35 Mpa Casing Cement Float Equipment Single Valve Float Collar Shoe
Brand: Puyang Zhongshi Group
Price: 1 USD

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~36"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Product : Cement Casing Single Valve Of Float Collar and Float Shoe

Processing : Forging

Usage : Drilling Equipment

Material : Tungsten Carbide & Steel

Feature : High Performance

Reverse pressure : 35 mpa

Contact Now

Cement Casing Single Valve Of Float Collar and Float Shoe

Description
The Float Collars and Float Shoe manufactured by our company use the Spring Driving back-pressure valve type. It has a high reliability

Cement Casing Single Valve Of Float Collar and Float Shoe Features

All inner parts are made of easily drillable aluminum alloy.
The device can be connected directly to same type casing.
Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
Valve seat and valve disk can effectively prevent grout from flowing back.
Hardness of base material is equivalent to API Spec N-80.

Cement Casing Single Valve Of Float Collar and Float Shoe Specification

Specification(in)		O.D.(mm)	I.D. (mm)	Total length(mm)	Min.Dia. (mm)	Conn Type	Affordable strength of back-pressure(Mpa)
Float Shoe	5	140.3	110	495	50	5 BCSG	35
	5 1/2	153.67	122	514	55	5 1/2 BCSG	35
	7	194.46	162.5	533	77	7 BCSG	35
	9 5/8	269.88	225	550	77	9 5/8 BCSG	35
	13 3/8	339.7	319	550	77	133/8 BCSG	35
	20	534	475	652	77	20 BCSG	35
Float Collar	5	141.3	110	500	50	5 BCSG	35
	5 1/2	153.67	112	530	55	5 1/2BCSG	35
	7	194.46	162.5	586	77	7 BCSG	35
	9 5/8	270	225	720	77	9 5/8 BCSG	35
	13 3/8	365	319	720	77	133/8 BCSG	35
	20	533.4	475	720	77	20 BCSG	35

35 Mpa Casing Cement Float Equipment Single Valve Float Collar Shoe

Product Tags:

Casing Cementing Accessories

Single Valve Cement Float Shoe

35 Mpa Cement Float Equipment

China 35 Mpa Casing Cement Float Equipment Single Valve Float Collar Shoe wholesale

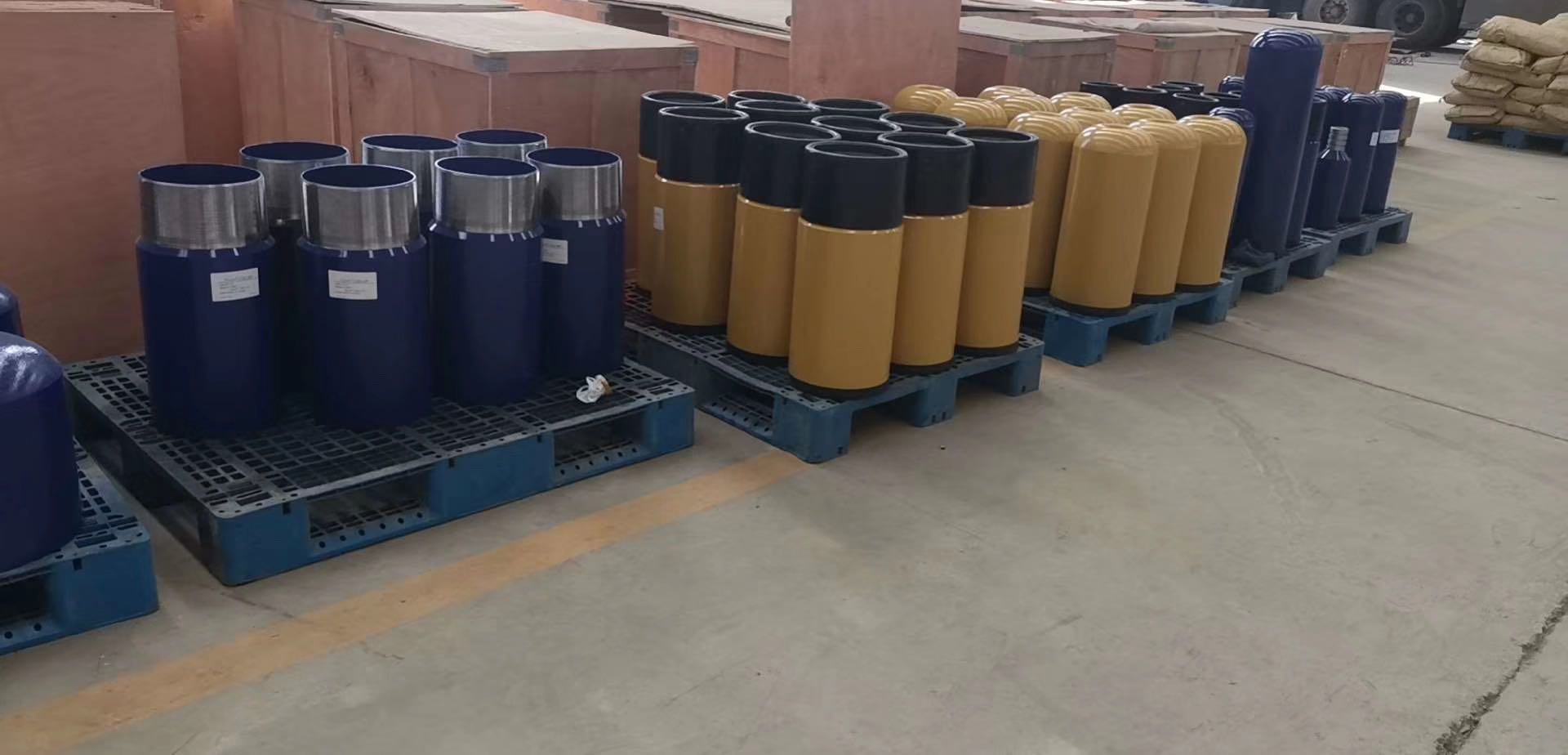

35 Mpa Casing Cement Float Equipment Single Valve Float Collar Shoe Images
