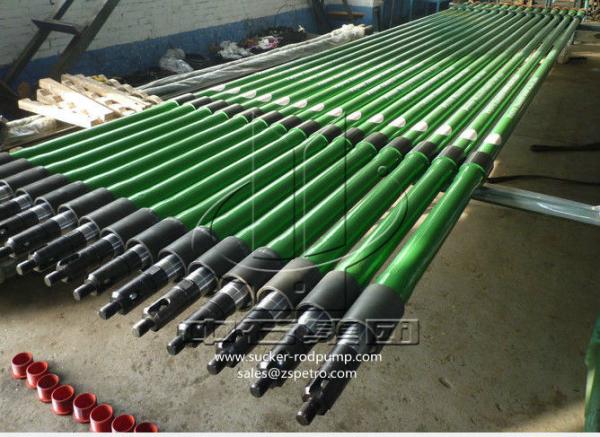

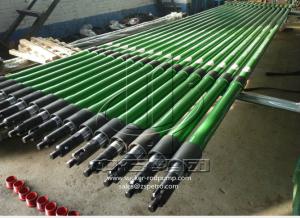

Oil Industry API Standard Well Pump Tubing Heavy Wall Barrel

Name: Oil Industry API Standard Well Pump Tubing Heavy Wall Barrel
Brand: Zhongshi
Price: 1 USD

China Oil Industry API Standard Well Pump Tubing Heavy Wall Barrel wholesale

Brand Name : Zhongshi

Model Number : Tubing pump

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Name : Well Pump Tubing

Feature : Strong structure

Industry : Oil industry

Pump type : Tubing pump

Barrel mateiral : Carbon steel

11AX No. : 0061

Contact Now

Oil Industry API Standard Well Pump Tubing Heavy Wall Barrel

Well Pump Tubing is installed by running in hole with the tubing string. Depending on the size and style of this pump, the plunger assembly is installed with the rod string or is already inside the pump with an On/Off Tool. In conjunction with the size and style of this pump, the standing valve assembly is either installed as a retrievable and is installed similarly to the Insert Pumps, or it is stationary and is already installed with the pump.

Well tubing pump type:

API-TH(B)M,Tubing ,Heavy Wall Barrel ,Mechanical Anchor Pump
API-TH(B)C,Tubing ,Heavy Wall Barrel ,Cup Type Anchor Pump

Well tubing pump features: Large oil production volume

Well tubing pump API parameters table:

THM model	pump diameter(in)	Barrel length(ft)	Plunger length(ft)	stroke length(ft)	Tubing size EUE(in)
20-175THM	Ø44.45	7-34	1-26	4-29	2 3/8"
25-225THM	Ø57.15				2 7/8"
30-275THM	Ø69.85				3 1/2"
40-375THM	Ø95.25				4 1/2"

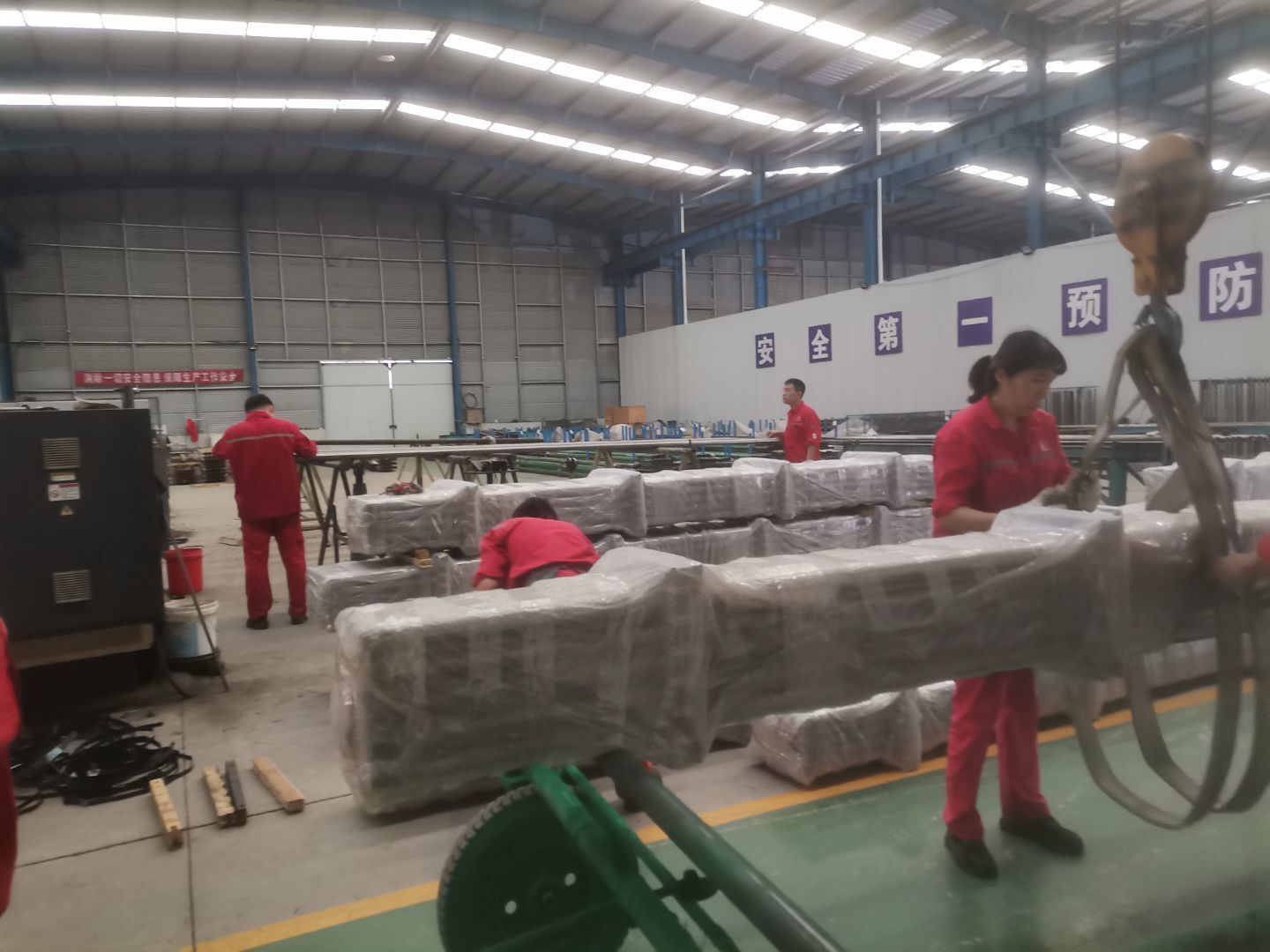

Well tubing pump loading for delivery:

Oil Industry API Standard Well Pump Tubing Heavy Wall Barrel
